MgO Insulation K Type Thermocouple Temperature Probe For Industrial

  • 1
  • 2

Brand Name : LEADKIN

Model Number : LK-K

Certification : ISO9001, IATF16949, CE

Place of Origin : NINGBO CHINA

MOQ : 50M

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1,000,000M/year

Delivery Time : 2-7 working days

Packaging Details : 70*70*8cm Carton

Core : 2,3,4,6

Insulation : MgO

Warranty : 1 Year

Temperature Range : 200℃-1000℃

Accuracy : Class I、II、III

Outside Dia : 0.5-12.7mm

Package : Carton. Pallet

Function : temperature test

Cable Length : 1-5m or Customized

Thermocouple Type : K/N/E/J/T/S/R/B

Contact Now

Quick Details:

Type: K/N/E/J/T/S/R/B

Place of Origin: Zhejiang, China (Mainland)

Accuracy: I-0.4%t, II-0.75%t, III-1.5%t

Core number: 2,3,4,6

Inorganic mineral insulating lead material: Ni, Cu

Insulator: 99.6% high purity MgO

Certificate:ISO9001, IATF16949, CE

Application: connecting with thermocouple and instrument machine

Sheath material: 0Cr18Ni10Ti, SS304S,SS316L,SS316, Cu

Sheath Dia(mm): φ3.0, φ4.0, φ6.0, φ8.0

Type for Sheath Wire Type K:

Product Name Code Type Shaeth Material Outside Dia. Temperature
NiCr-NiSi /NiCr-NiAl KK K SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCrSi-NiSi NK N SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCr-Konstantan EK E SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Fe-Konstantan JK J SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Cu-Konstantan TK T SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
RhPt10-Ph SK S Inconel600 6.0-12.7 1100

Different temperature measuring media and service conditions have an impact on the service life and temperature range of armored thermocouples, the data in the table is only recommended data.

Accuracy for Sheath Wire Type K

Type Class I Class II
Accuracy Temp.Range Accuracy Temp.Range
K ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
N ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
E ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
J ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
T ±0.5℃ -40~125℃ ±1.0℃ -40~125℃
±0.4% 125℃-350℃ ±0.75% 125℃-350℃
S 0-1100℃ ±1.0℃ 0-1100℃ ±1.5℃

About this product:

A thermocouple temperature probe is a widely used device for measuring temperature across various applications and industries. It consists of two dissimilar metal wires joined at one end, creating a junction that generates a voltage proportional to the temperature difference between the junction and the other ends of the wires. Here’s a detailed overview of thermocouple temperature probes, including their types, construction, working principles, applications, advantages, and disadvantages.

Key Components of a Thermocouple Temperature Probe

Thermocouple Wires:

Two different metals or alloys are used to create the thermocouple. Common combinations include:

Type K: Chromel (Nickel-Chromium) and Alumel (Nickel-Aluminum)

Type J: Iron and Constantan (Copper-Nickel alloy)

Type T: Copper and Constantan

Type R, S, B: Platinum-Rhodium alloys for high-temperature applications.

Junction:

The point where the two wires are joined. This is the sensing element of the probe where the temperature is measured.

Applications :

  • Solid waste incinerators
  • Sintering powdered metals
  • Firing ceramic materials
  • Gas or oil fired furnaces
  • Fuel fired heat exchangers
  • Box furnaces
  • Nuclear or hydrocarbon based energy plants
  • And many more...

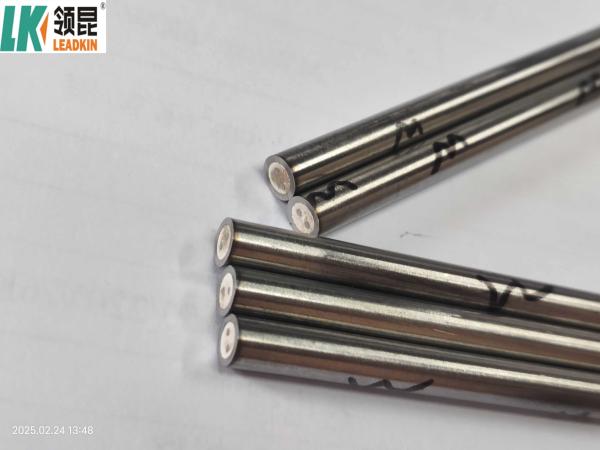

Product Pictures:

MgO Insulation K Type Thermocouple Temperature Probe For Industrial

Company Information:

A. Main Products

MgO Insulation K Type Thermocouple Temperature Probe For Industrial

MgO Insulation K Type Thermocouple Temperature Probe For Industrial

B. Package

We add heat shrink tubing and plastic film to make sure high insulated resistance.

Except marking notes, we also have pass card and test report for every coil cable.

MgO Insulation K Type Thermocouple Temperature Probe For Industrial

C. Mi cable Production line

We have high - quality professional products, as well as advanced product lines and equipments. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Along the increasing market demands, we continuously satisfy customers by updating products to improve prouduction systems, improve quality.

Order Notice:

1. Accurate quotation.

2. Confirm the price, trade term, lead time, payment term etc.

3. LEADKIN sales send the Proforma Invoice with LEADKIN seal.

4. Customer arranges the payment for deposit and sends us bank slip.

5. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again.

6. End Production-Mass production products photos.

7. Clients make payment for balance and LEADKIN ships the goods. Inform the tracking number and check the status for clients.

8. The order is finished perfectly when you receive the goods and get satisfied with them .

9. Feedback to LEADKIN about Quality , Service, Market Feedback & Suggestion. And we will do better .
